QUICK OVERVIEW

hagen 160413 0027webVapro-SS Flashing, flexible 2 mil sheet, 304 stainless steel, is stable, air tight, puncture, and tear resistant. It is available in 4", 6", 12", and 18" widths.Multi-purpose self-adhered flashing that can be used in a variety of applications.

  • Watertight bond
  • Fire resistant
  • UV resistant
  • Low temperature application
  • Use with all VaproShield materials
  • Through-wall flashing for masonry and stone
  • Transition membrane
  • Rough opening flashing







Rough Opening Flashing

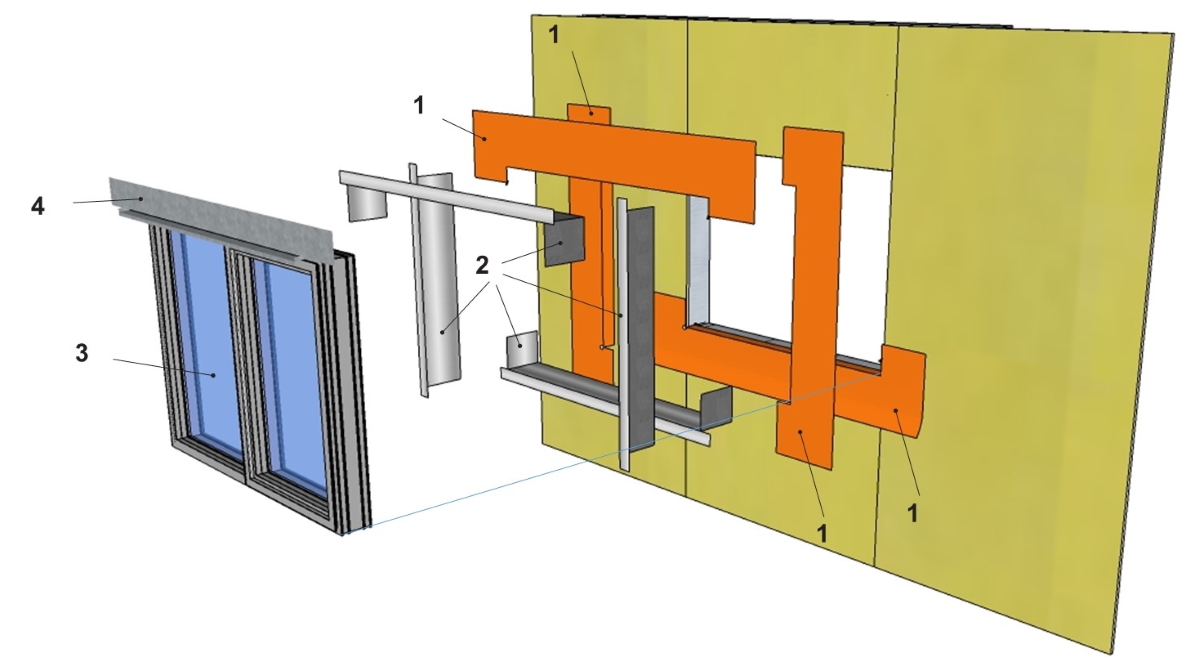

VS Detail129 Vapro SS Flashing Exploded 021720

1. WrapFlashing SA Self-Adhered applied directly to sheathing + folded 2.75" inside of rough opening

2. Vapro-SS Flashing installed in shingle fashion (sill, jambs, head) with bead of VaproBond at corners

3. Window installation and sealant joints + backer rod (by others)

4. Head flashing (by others) over Vapro-SS Flashing + embedded in VaproBond

Through-Wall Application

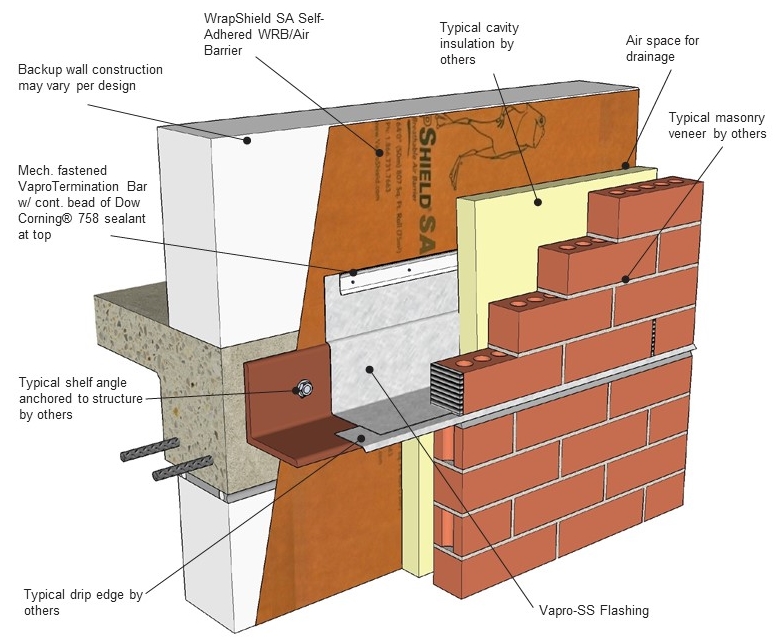

VS 113 VaproSSFlashing ShelfAngle ILLUSTRATION 031616a

 Parapet Application

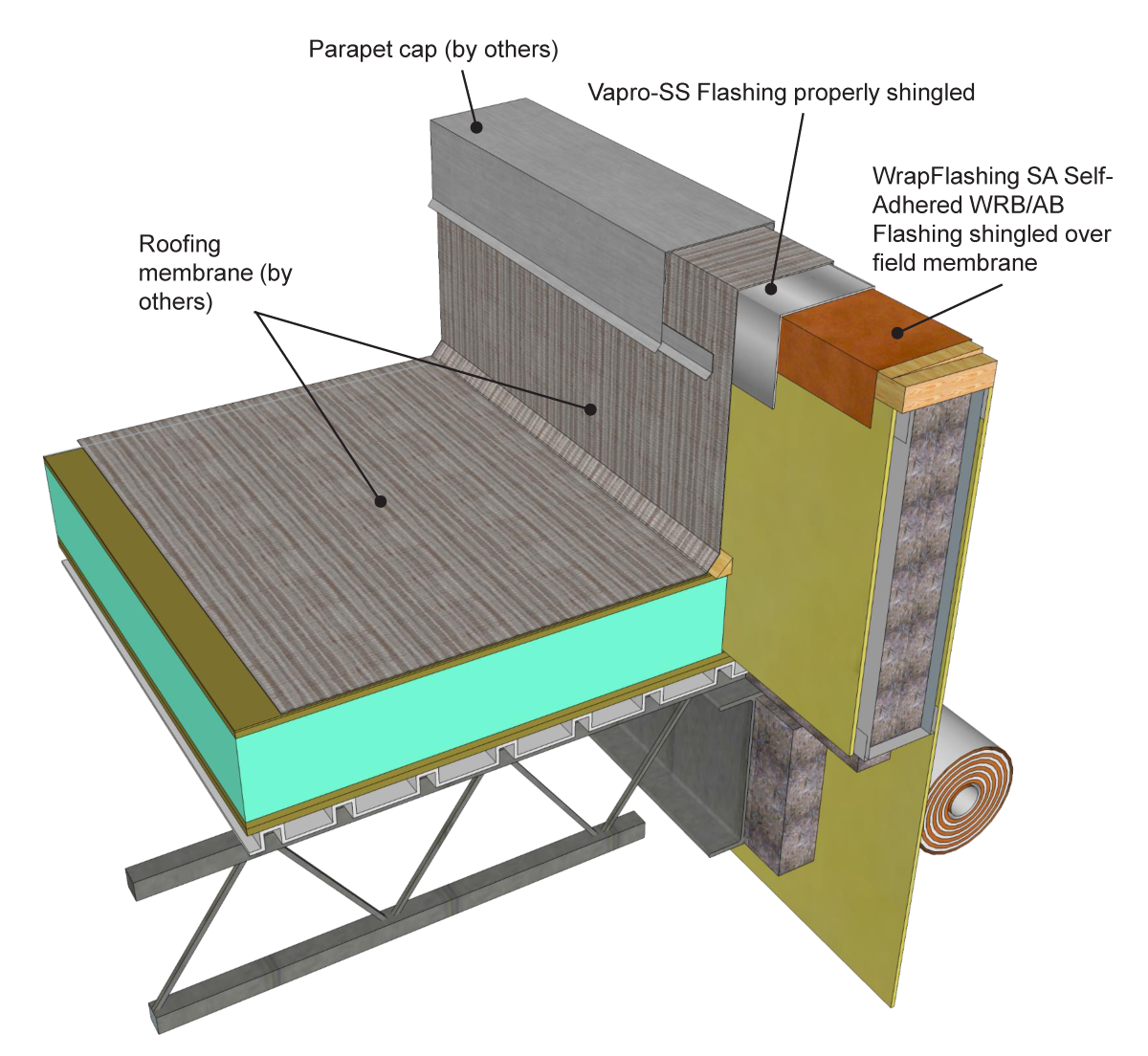

VS 117 WrapShieldSA ParapetInside 100317


  pdf Printer Friendly (1.10 MB) (PDF)

Approvals and Testing

Property Test Method Typical Value
Tensile Strength ASTM D882 100,000 psi
Puncture ASTM E154 2,500 psi
Adhesion PSTC-1 20 psi
Application Temperature

20°F to 170°F
(-6.7°C to 77°C)

Fire Resistance ASTM E84 PASS, Class A
Mold Resistance ASTM D3273 PASS
